We classify the complete plan set, separate the relevant civil, architectural, grading, utility, and survey sheets, then keep modelspace, paperspace, and detail sheets connected to the right output. Each plotted PDF is shown next to the separate CAD files that match the work on the sheet.

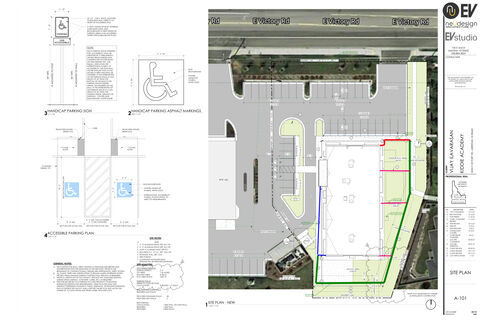

A multi-sheet permit set paired with the architectural, civil base, and boundary/topographic source drawings.

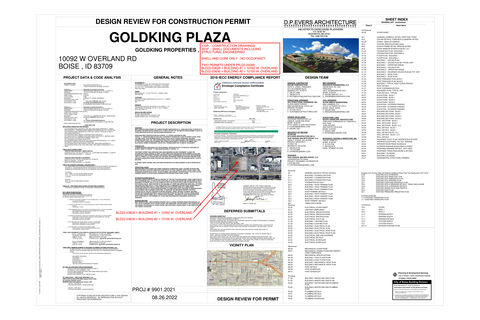

A combined permit planset shown with the grading, site, and survey DWGs that make up the underlying civil deliverables.

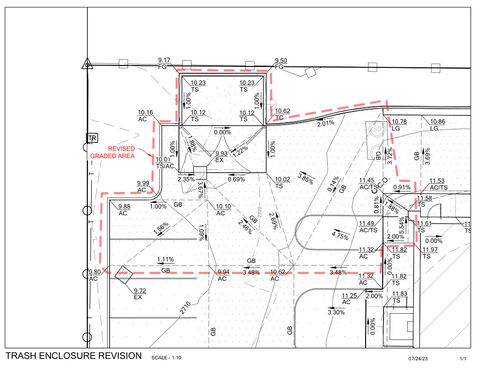

A single revision sheet paired with the site and survey authoring files used around the enclosure detail.
Upload a vector plan set and choose the sheets you need. PDF-Plot classifies the set, separates each relevant plan and detail, and restores one independent CAD file per sheet with its available layers, colors, linetypes, blocks, dimensions, text, modelspace, and paperspace evidence. Where a PDF cannot prove a native Civil 3D behavior, the result is labeled as a faithful plotted restoration—not falsely presented as the untouched authoring DWG.
